Coordinate Measuring Machine Price Products – PPG-20153ELS-800G Semi-automatic PPG thickness gauge – Chengli Detail:
Product Video
Parameters & Features
|
S/N |
Item |
Configration |
|
1 |
Effective test area |
L200mm × W150mm |
|
2 |
Thickness range |
0-30mm |
|
3 |
Working distance |
≥50mm |
|
4 |
Reading resolution |
0.0005mm |
|
5 |
Flatness of marble |
0.003mm |
|
6 |
Measurement error of one position |
Put a 5mm standard gauge block between the upper and lower pressure plates, repeat the test 10 times at the same position, and its fluctuation range is less than or equal to 0.003mm. |
|
7 |
Comprehensive measurement error |
A 5mm standard gauge block is placed between the upper and lower pressure plates, and the 9 points evenly distributed in the pressure plate are measured. The fluctuation range of the measured value of each test point minus the standard value is less than or equal to 0.01mm. |
|
8 |
Test pressure range |
500-2000g |
|
9 |
Pressure method |
Use weights to pressurize |
|
10 |
Work beat |
9 seconds |
|
11 |
GR&R |
<10% |
|
12 |
Transfer method |
Linear guide, screw, stepper motor |
|
13 |
Power |
12V/24v |
|
14 |
Operating environment |
Temperature：23℃±2℃ Humidity：30～80% |
|
Vibration：＜0.002mm/s，＜15Hz |
||
|
15 |
Weigh |
45kg |
|
16 |
***Other specifications of the machine can be customized. |
|
Product Description
for the requirements of customers in the new energy industry to rapidly detect battery thickness under specific pressure. It overcomes the problems of unstable pressure, poor adjustment of the parallelism of the splint, and low measurement accuracy when measuring the thickness of lithium batteries on the market. This series of instruments has fast measurement speed, stable pressure and adjustable pressure value, which greatly improves the measurement accuracy, stability and measurement efficiency.
Introduction
The PPG is suitable for measuring the thickness of lithium batteries, as well as measuring other non-battery thin products. It uses stepper motors and sensors to drive, which makes the measurement more accurate.
Operating steps
2.1 Turn on the computer;
2.2 Power on the instrument;
2.3 Open the software;
2.4 Initialize the instrument and return to the origin;
2.5 Put the standard gauge block into the equipment for calibration
2.6 Start measuring.
The main accessories
3.1.Sensor: Open grating encoder.
3.2.Coating: Stoving varnish.
3.3.Material of parts: steel, grade 00 jinan blue marble.
3.4.Cover material: Steel and aluminum.
Power Supply
AC220V/50HZ
AC110V/60HZ

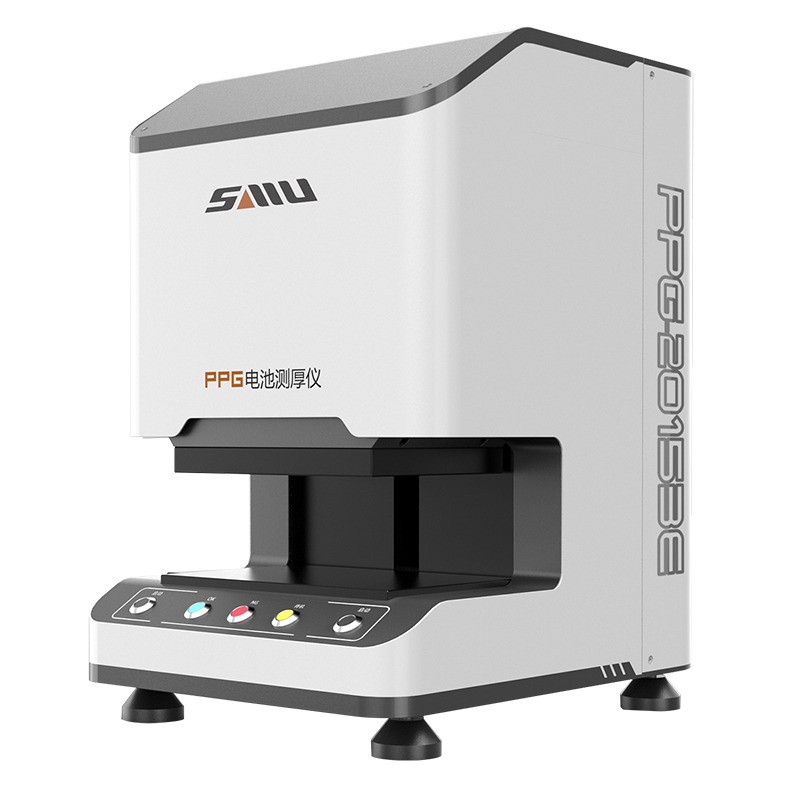

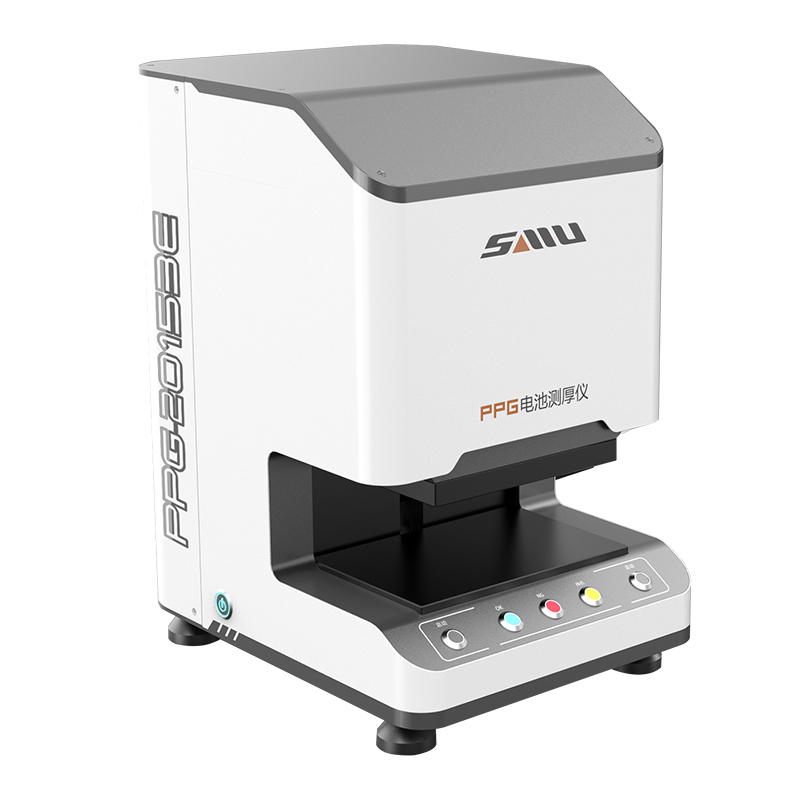

Product detail pictures:
