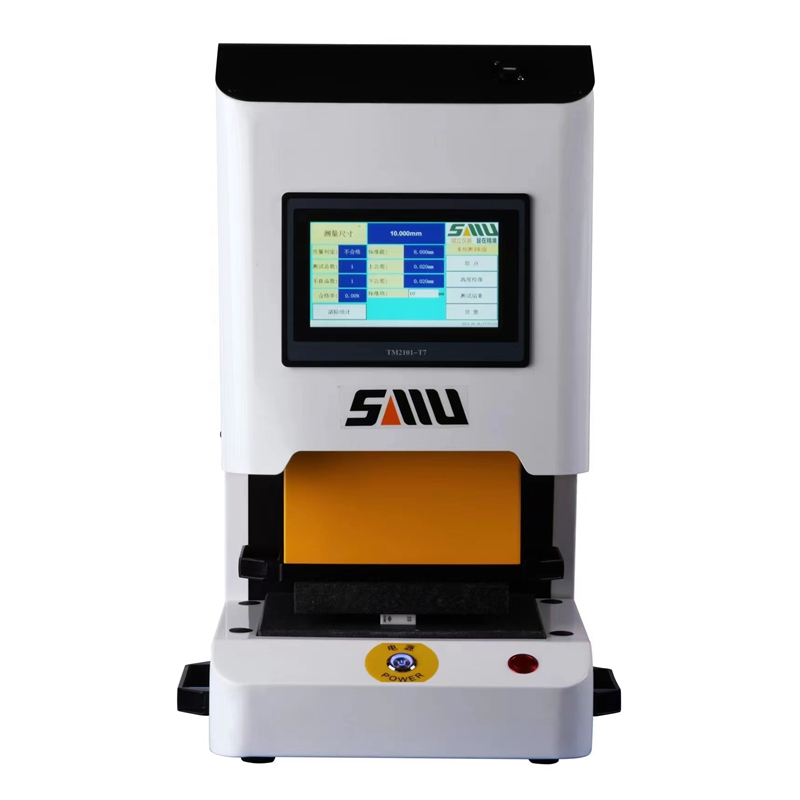

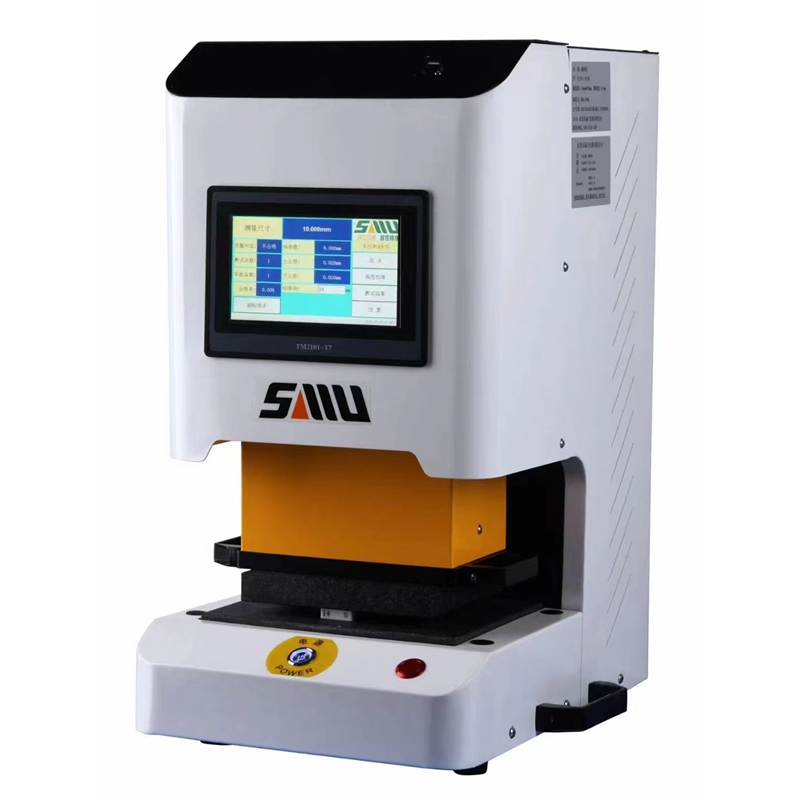

Manual PPG Battery Thickness Gauge (Touch Screen) PPG-20153M-2000g
Brief introduction of the equipment
This equipment overcomes the problems of unstable pressure, difficult adjustment of the parallelism of the splint, too low measurement height, unstable measurement accuracy, etc. when measuring the thickness of soft-pack batteries on the market.
This equipment has fast measurement speed, stable pressure, and adjustable pressure value, which greatly improves the measurement accuracy and stability, and greatly improves the measurement efficiency.
Technical parameters of the equipment
| S / N | project | Configuration |
| 1 | Test effective area | L 200mm ×W 150mm |
| 2 | Test thickness range | 0~50mm |
| 3 | Test space height | ≥50mm |
| 4 | Resolution ratio | 0 001mm |
| 5 | Single-point measurement error | 0.005mm |
| 6 | Combined with the measurement error | ≤0.01mm |
| 7 | Test the pressure range | 500~2000g ±10% |
| 8 | Pressure transmission mode | Weight weight / manual adjustment |
| 9 | Data system | Digital display screen + sensor (patch grating ruler) |
| 10 | Work environment | Temperature: 23℃± 2℃ Humidity: 30~80% |
| Vibration: <0.002mm / s, <15Hz | ||
| 11 | Source | Operating voltage: DC24V |
Equipment operation steps
1. Manually put the battery on the thickness measuring test platform;
2. Lift the test pressure plate, test the pressure plate natural pressure test;
3. After the test is completed, lift the test pressure plate;
4. Manually remove the battery, and the whole action is completed, and enter the next test;
Main components of the equipment
1. Measurement sensor: patch grating ruler
2. Data display: digital display screen
3. Fuscage: spray paint on the surface.
4. Machine parts materials: steel, grade 00 Jinan green marble.
5. Machine safety cover: sheet metal parts.
