PPG-435ELS Electric Type Battery Thickness Gauge
Products Video
Technical parameters of equipment
|
NO. |
Project |
Parameter |
Remarks |
|
1 |
Test effective area |
L400mm×W300mm |
|
|
2 |
Test thickness range |
0-50mm |
|
|
3 |
Working distance |
60mm |
|
|
4 |
Single point repetition accuracy |
Use PPG standard gauge block and put it between the upper and lower pressure plates. Repeat the test for 10 times at the same position, and the fluctuation range is less than ±0.01mm |
|
|
5 |
Test pressure value |
500kg ，Pressure fluctuation range 2% |
|
|
6 |
Pressure mode |
Servo motor pressurization |
|
|
7 |
Grating scale resolution |
0.0005mm |
|
|
8 |
System working beat |
65S (Pressure-free holding time; The greater the test pressure, the longer the test time.) |
|
|
9 |
Voltage |
AC220V |
|
|
10 |
Computer configuration |
Intel i5 500G SSD |
|
|
11 |
Monitors |
Philips 24 inch |
|
|
12 |
After-sale service |
The whole machine is guaranteed for 1 year |
|
|
13 |
Code sweeper |
Newland |
|
|
14 |
Gauge block |
Custom-made precision gauge block |
|
|
15 |
PPG special software |
Free upgrade for life |

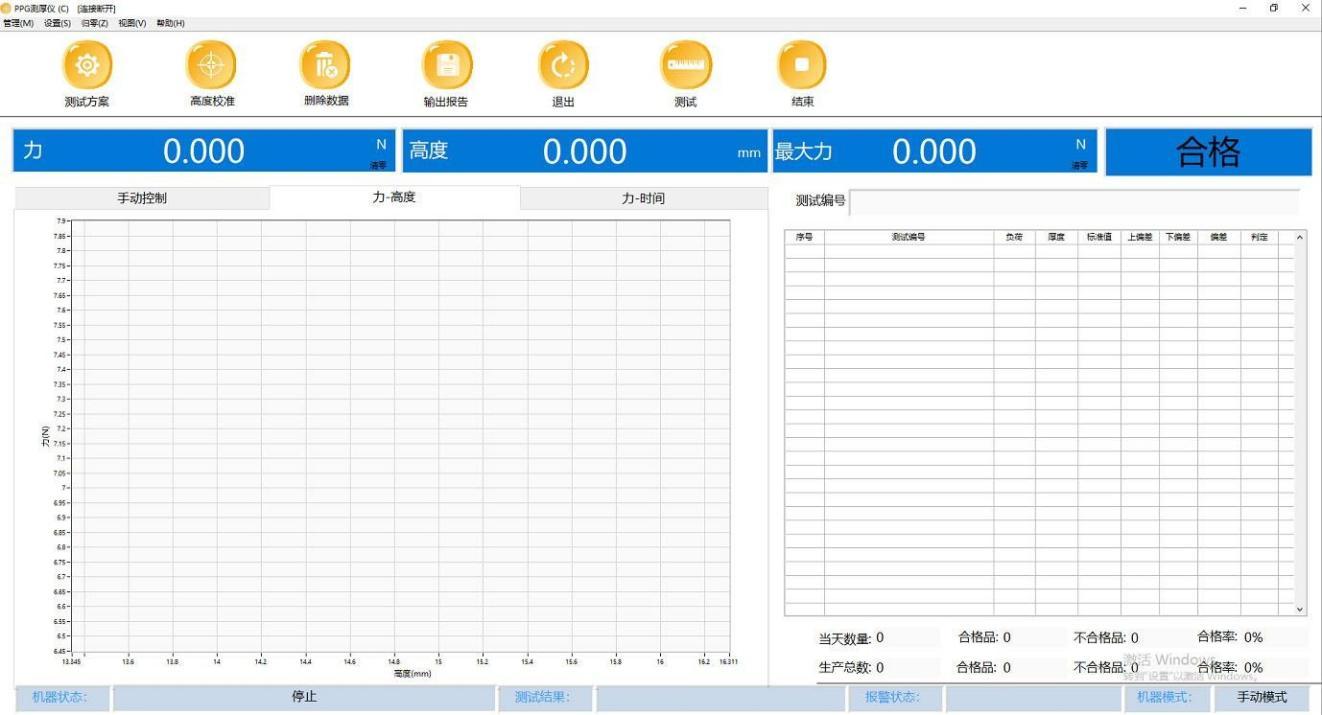

Software interface
Device operation steps
2.1. Put the battery into the test platform of the thickness measuring machine, and set or select the measurement scheme (force value, upper and lower tolerance, etc.);
2.2. Press the double start button (or F7 key/software test icon), and test the pressing plate for pressing test;
2.3. After the test is completed, the test platen rises;
2.4. Remove the battery, complete the whole action, and enter the next test;
Basic requirements of equipment and requirements of main components
3.1. Appearance color of equipment: white;
3.2. The ambient temperature of the equipment is 23 2℃, the humidity is 40-70%, and the vibration is less than 15Hz.
